Learn how to build a DIY Arduino fire alarm system using a flame sensor and temperature sensor. This step-by-step project includes a circuit diagram, code, and real-world applications, ideal for home safety or educational use.

Creating a basic fire alarm system using Arduino involves detecting fire (typically via temperature or flame sensors) and triggering an alarm like a buzzer or LED. Below is a complete example using a Flame Sensor and/or Temperature Sensor (e.g., LM35 or DHT11).

🔥 🔔 Usage of the Arduino Fire Alarm System Project

🏠 1. Home Fire Safety

• Detects early signs of fire through flame or high temperature.
• Alerts the residents via a buzzer and LED, helping them evacuate in time.
• Can be installed in kitchens, bedrooms, or living rooms.

🏢 2. Offices and Small Businesses

• Acts as a low-cost fire safety system for small offices or shops.
• Ideal for places without expensive commercial fire systems.
• Easy to expand using multiple sensors in different rooms.

🧪 3. Educational Purpose

• Great for learning Arduino and sensor integration.
• Teaches important concepts: digital vs. analog sensors, conditional logic, and alarms.
• Often used in school and college projects or science fairs.

🏭 4. Industrial or Workshop Monitoring

• Can be placed near electrical panels, soldering stations, or machines prone to overheating or sparks.
• Provides early detection before fire spreads.

🌐 5. Smart Home / IoT Integration (Optional)

• Can be expanded to send SMS, emails, or app notifications using modules like:
  • ESP8266 (Wi-Fi)
  • GSM module (SIM800L)
• Can be connected to home automation systems (e.g., Blynk, Home Assistant).

🚫 6. Fire Prevention

Can trigger fans, sprinklers, or cut power using relays in advanced setups.

Alerts before an actual fire breaks out (e.g., detecting a candle or match flame).

🔧 Components Needed:

• Arduino Uno or compatible board
• Flame sensor
• DHT11 or LM35 temperature sensor
• Buzzer
• Red LED (for alarm indication)
• Resistors (220Ω for LED)
• Breadboard and jumper wires

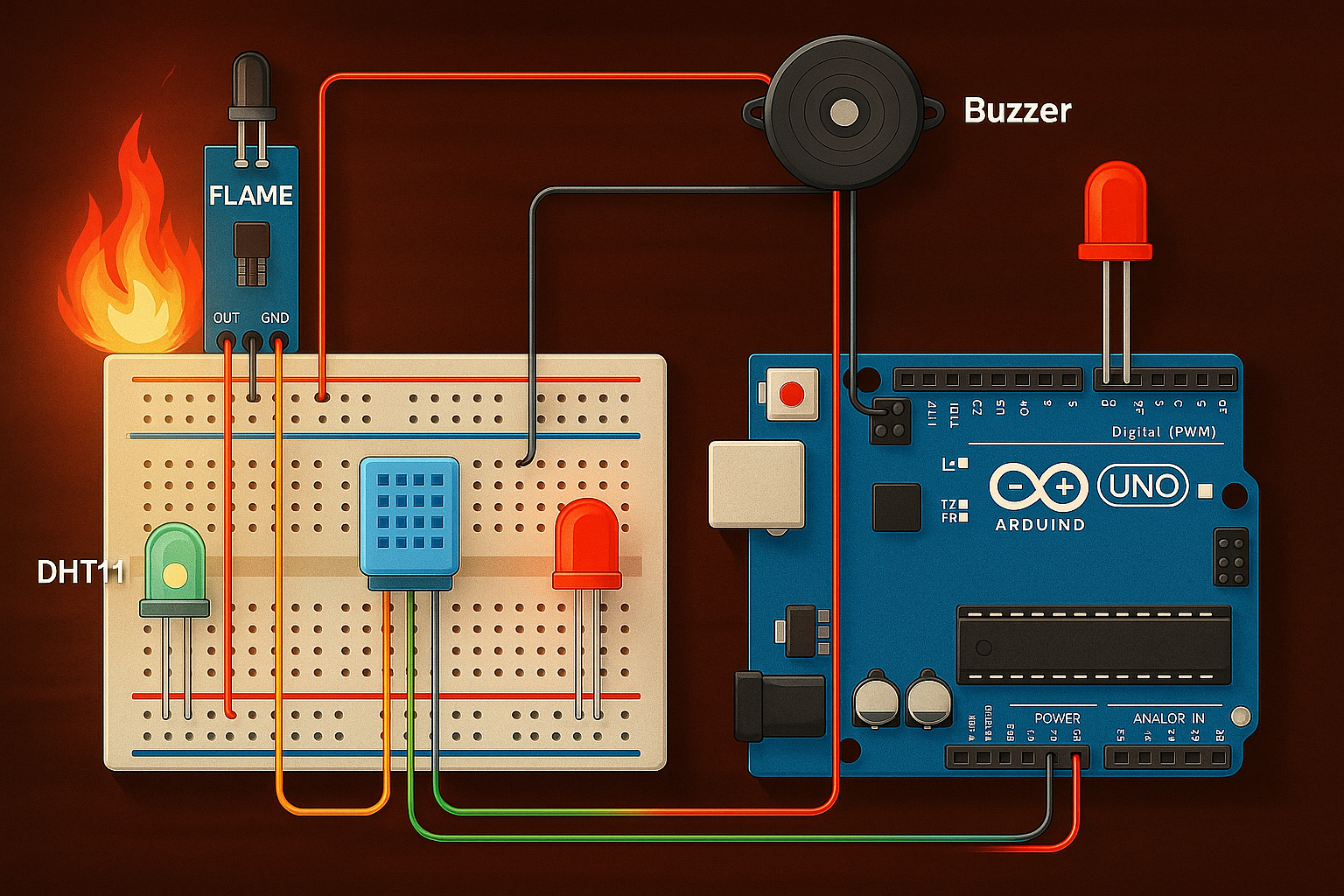

🔌 Circuit Connections

1. Flame Sensor

• VCC → 5V
• GND → GND
• D0 → Arduino pin 2

2. DHT11 Sensor (if used)

• VCC → 5V
• GND → GND
• Data → Arduino pin 3
  (Use 10k pull-up resistor between VCC and Data pin)

3. Buzzer and LED

• Buzzer + → Arduino pin 8
• LED Anode → Arduino pin 9 (via 220Ω resistor)
• Buzzer – and LED Cathode → GND

📝 Notes:

• The flame sensor usually outputs LOW when flame is detected, hence flameDetected == LOW.
• Adjust the temperature threshold (e.g., 50°C) as needed.
• Optionally, you can add an LCD or Wi-Fi alert (e.g., via ESP8266) to notify remotely.

Here’s a step-by-step explanation of how the Arduino fire alarm system works:

🔍 1. Sensor Input

a. Flame Sensor

• Detects infrared light emitted by flames.
• Has a digital output (D0) that goes:
  • LOW (0) when flame is detected
  • HIGH (1) when no flame is present

b. Temperature Sensor (DHT11 or LM35)

• Measures ambient temperature.
• If the temperature is above a set limit (e.g., 50°C), it is considered a fire hazard.

⚙️ 2. Arduino Logic

Every second, the Arduino does the following:

1. Reads the flame sensor pin (digitalRead):
   • If it’s LOW → Flame is detected.
2. Reads the temperature (via DHT11 or LM35):
   • If temperature ≥ 50°C → Consider it as possible fire.
3. Evaluates both conditions:
   • If either flame is detected or temperature is too high,
     • It activates the buzzer and LED alarm.
   • Otherwise,
     • Turns them OFF.

🔔 3. Alarm Output

• Buzzer sounds continuously when fire is detected.
• Red LED blinks or stays on to visually indicate the alarm state.

📟 4. Serial Monitor Output (for Debugging)

• The Arduino prints temperature and flame detection status every second.
  • e.g., Temp: 52.3 C | Flame: YES

You can view this using the Serial Monitor in the Arduino IDE (set baud rate to 9600).

🔄 Summary Flow:

[Sensor Input]
   ↓
[Check: Flame Detected OR Temp ≥ 50°C]
   ↓
If TRUE:
   → Activate Buzzer & LED
Else:
   → Turn Off Buzzer & LED

🧠 Arduino Code

#include <DHT.h>

#define DHTPIN 3
#define DHTTYPE DHT11

#define FLAME_SENSOR_PIN 2
#define BUZZER_PIN 8
#define LED_PIN 9

DHT dht(DHTPIN, DHTTYPE);

void setup() {
  pinMode(FLAME_SENSOR_PIN, INPUT);
  pinMode(BUZZER_PIN, OUTPUT);
  pinMode(LED_PIN, OUTPUT);

  Serial.begin(9600);
  dht.begin();
}

void loop() {
  int flameDetected = digitalRead(FLAME_SENSOR_PIN);
  float temp = dht.readTemperature();

  Serial.print("Temp: ");
  Serial.print(temp);
  Serial.print(" C | Flame: ");
  Serial.println(flameDetected == LOW ? "YES" : "NO");

  if (flameDetected == LOW || temp >= 50.0) {
    // Fire alarm triggered
    digitalWrite(BUZZER_PIN, HIGH);
    digitalWrite(LED_PIN, HIGH);
  } else {
    digitalWrite(BUZZER_PIN, LOW);
    digitalWrite(LED_PIN, LOW);
  }

  delay(1000);
}

✅ Conclusion

This Arduino-based fire alarm system is a low-cost, easy-to-build, and effective solution for detecting early signs of fire using a flame sensor and temperature sensor. It demonstrates:

• Practical use of sensors for real-world safety applications
• Basic Arduino programming and logic control
• Real-time alerts via buzzer and LED when danger is detected

This project is ideal for:

• Home and small office fire safety
• Educational demonstrations
• A base model for more advanced IoT-based alarm systems

You can further enhance the system with:

• SMS/email alerts using GSM or ESP modules
• LCD display for real-time readings
• Integration with smart home platforms
